MIE-300-2C – Double Component PU Grouting Machine (1:1 Mix Ratio)

  • Home
  • PU Injection & Epoxy Grouting Machines
Service Image

MIE-300-2C – Double Component PU Grouting Machine (1:1 Mix Ratio)

The Double Component PU Grouting Machine (Model MIE-300-2C) is a high-performance injection system designed for precision sealing and waterproofing applications. It mixes and injects dual-component polyurethane or epoxy materials in a 1:1 ratio. Powered by a Bosch drill motor, the machine delivers stable pressure and consistent operation, making it ideal for structural repairs, crack injection, and industrial waterproofing.

Features
  • Model No: MIE-300-2C
  • Mix Ratio: 1:1
  • Max Pressure: 300 BAR / 5000 PSI
  • Output Flow Rate: 1 Ltr/min (free flow)
  • Hose Size: 1/4" x 3 meters
  • Input Power: 220V / 50 Hz
  • Viscosity: 50–800 Cps
  • Drive Motor: Bosch drill machine
  • Hopper Capacity: 1.4 Ltr
  • Material: 2K PU / Epoxy
  • Min Pot Life: 90–300 sec
  • Pump Body Material: Aluminium solid
Applications
  • Structural crack injection in concrete
  • Basement, tunnel & retaining wall waterproofing
  • Bridge & dam crack rehabilitation
  • Injection into porous concrete structures
  • Industrial floor crack sealing
  • Repair of construction & expansion joints
  • Epoxy/PU resin filling in honeycombs or voids

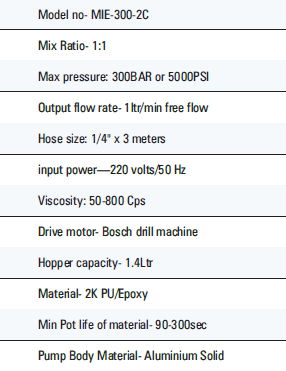

Table
Table Image
