Electrical Cement Grouting Pump (250LPH, 500LPH, 1000LPH)

  • Home
  • Electrical Cement Grouting Pumps
Service Image

Electrical Cement Grouting Pump (250LPH, 500LPH, 1000LPH)

The Electrical Cement Grouting Pump is a positive displacement screw-type pump designed for high-pressure and high-discharge cementitious grouting. Available in output capacities of 250, 500, and 1000 liters per hour with pressure ratings of 12 bar and 24 bar, it ensures efficient pumping of high-viscosity cement slurry. The system uses a single screw mechanism that moves material along a cylindrical cavity, ensuring smooth, continuous flow. Built on a strong C-channel frame and equipped with standard hoses and hopper options, this pump is ideal for demanding construction and grouting applications

Features
  • Screw-type positive displacement pumping mechanism
  • Available discharge options: 250, 500, and 1000 LPH
  • Pressure capacity: 12 bar (170 PSI) & 24 bar (340 PSI)
  • Efficient pumping of high-viscosity cement slurry
  • Motor power options: 2 HP / 1.5 KW, 3 HP / 2.25 KW, 5 HP / 3.5 KW
  • High-grade tool steel rotor
  • Durable natural rubber bonded stator
  • V-belt & pulley drive
  • Sturdy C-channel frame mounting with 4-wheel mobility
  • Hopper capacity: 30–40 liters (customizable)
  • Standard hose length: 10 meters
  • Suitable for slurry density of 1.5 g/cc
  • Optional colloidal mixer availability
  • Gearbox drive available at extra cost
Applications
  • Cementitious grouting for construction and infrastructure
  • High-viscosity cement slurry pumping
  • Grouting for tunnels, dams, bridges & reservoirs
  • Soil stabilization & rock anchoring
  • Repair & rehabilitation works
  • Precast joint grouting
  • Pressure grouting for waterproofing

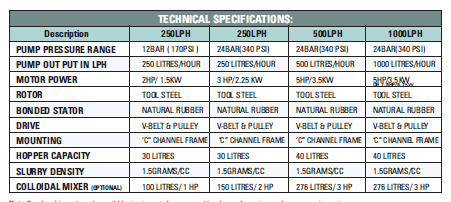

Table
Table Image
